7511/7521-QC TEMA Standard Series Quick Coupling

Technical Description

The TEMA Standard Series is

characterised by a low pressure drop and maximum flow

capacity. The coupling system

is available as double shut-off

or straight through version.

The 2500 can be used also as

a single shut-off version.

Super Nipple

Increased hardening for better

wear resistance

Advantages

•High operating pressure.

•Compact dimension.

•Due to the Pressure Eliminator

version for coupling and plug

the connection is possible up

to the operating pressure.

•Double safety through a double

O-ring seal.

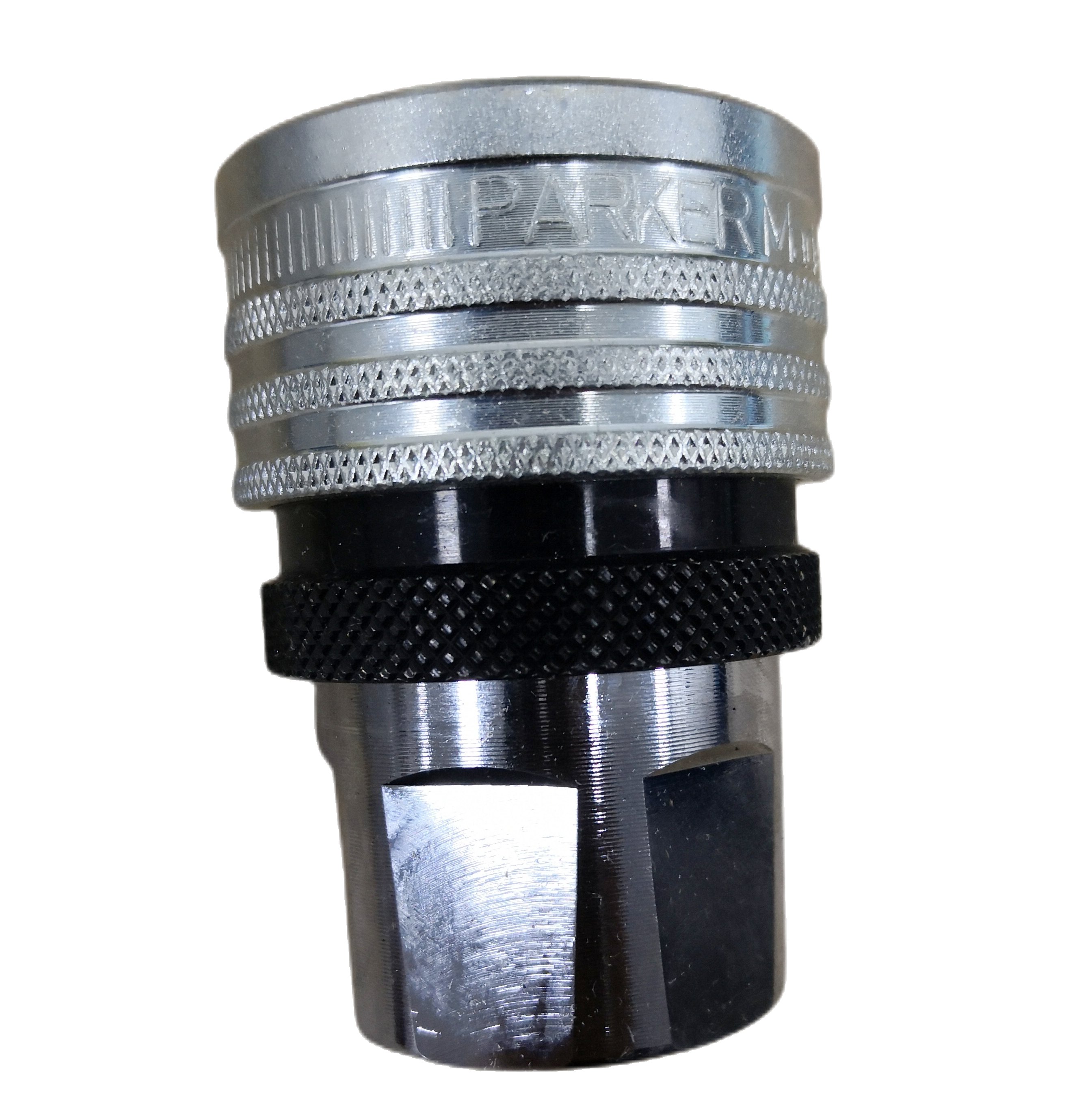

•A safety locking sleeve

prevents unintentional disconnection.

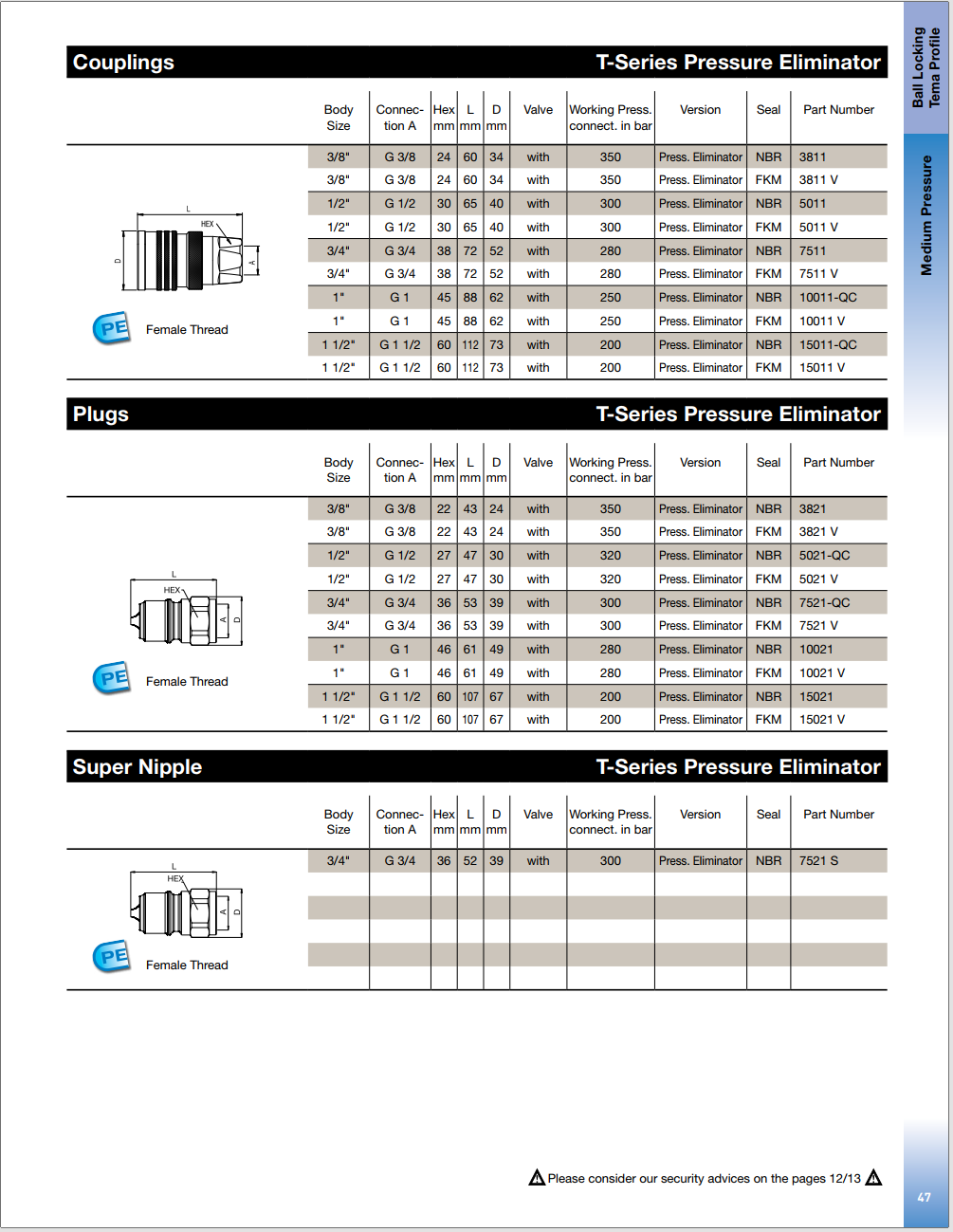

Working Pressure

See charts.

Working Temperature

-30°C up to +100°C (NBR)

-25°C up to +200°C (FKM)

depending on the medium.

Special seals are available

on request (see page 6).
